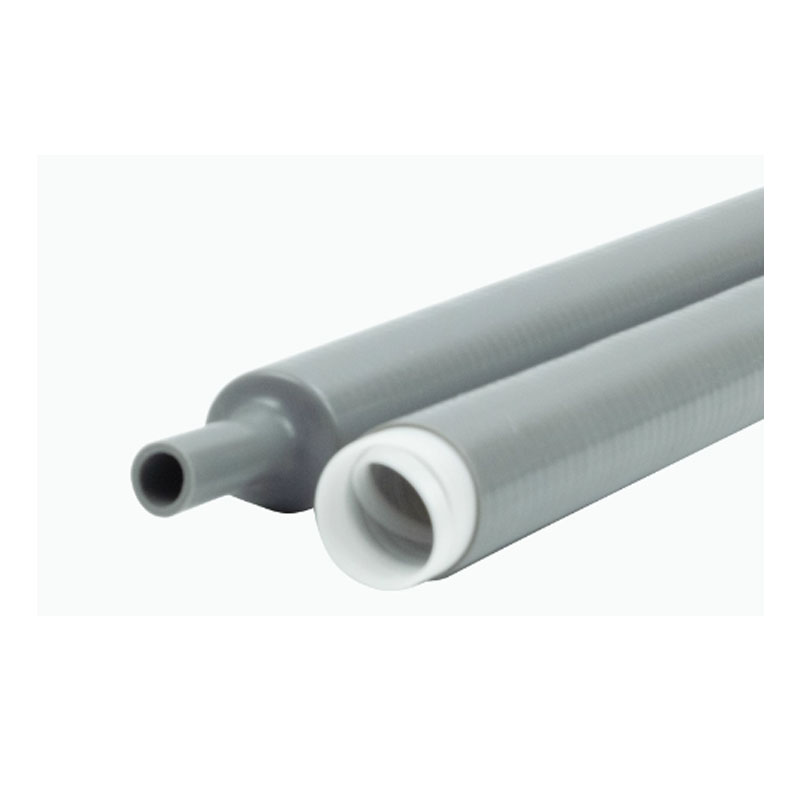

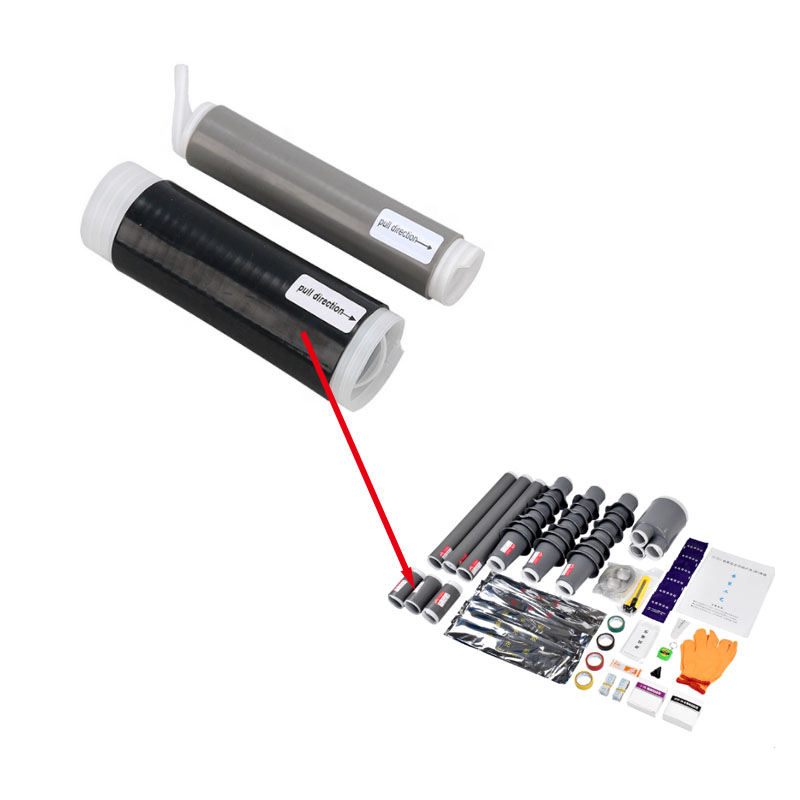

LDEPOM nubber cold shrink sleeve is a pre-expansion pumpingsupport tube rubber after removing the insulating sleeve, just usepositioning the support bar can use its radial pressure to form a coating.waterprooing, moisture-proof sealing effect. Excellent weather resistance.acid and alkali resistance, to the role of breathing the same air sealedand communication cables,coaxial cables cable,low voltage powercables ideal sealing material.
Standard colors: Black.
Simple installation, requires only hands
Excellent wet electrical properties.
Accommodates a wide range of cable sizes.
Resists fungus
Not torches or heat required.Resists acids and alkalis.
Good thermal stability
Resists ozone and ultraviolet light
| Property | Test method | Parameter |
| Shoe hardness (A) | GB/T531.1-2008 | 48± 2 |
| Tensile strength (Mpa) | GB/T528-1998 | ≥11.6 |
| Elongation at break (%) | GB/T528-1998 | ≥500% |
| Dielectric strength (kV/mm) | GB1695-2005 | ≥19.1 |
| Dielectric constant( ε ) | IEC 250 | ≈5.0 |
| Normal size (mm) | AS supplied(mm) | After recovered(mm) | Length(mm) | Tubing shape | |
| Inside diameter | Inside diameter | Wall thickness | |||
| LDEPDM-18/8 | >18 | 8 | 2 | 200 or 500 | ○ |
| LDEPDM-25/10 | >25 | 10 | 2 | 200 or 500 | ○ |
| LDEPDM-32/13 | >32 | 13 | 2.2 | 200 or 500 | ○ |
| LDEPDM-38/18 | >38 | 18 | 2.3 | 200 or 500 | ○ |
| LDEPDM-45/20 | >45 | 20 | 2.3 | 200 or 500 | ○ |
| LDEPDM-50/22 | >50 | 22 | 2.4 | 200 or 500 | ○ |
| LDEPDM-60/25 | >60 | 25 | 2.4 | 200 or 500 | ○ |
| LDEPDM-70/30 | >70 | 30 | 2.6 | 200 or 500 | ○ |
| LDEPDM-80/35 | >80 | 35 | 2.6 | 200 or 500 | ○ |
| LDEPDM-100/40 | >100 | 40 | 2.6 | 200 or 500 | ○ |
For more detailed information about our products, please feel free to contact us for a quote.
We offer customized solutions specifically built to meet your exact specifications, environment and performance goals.
