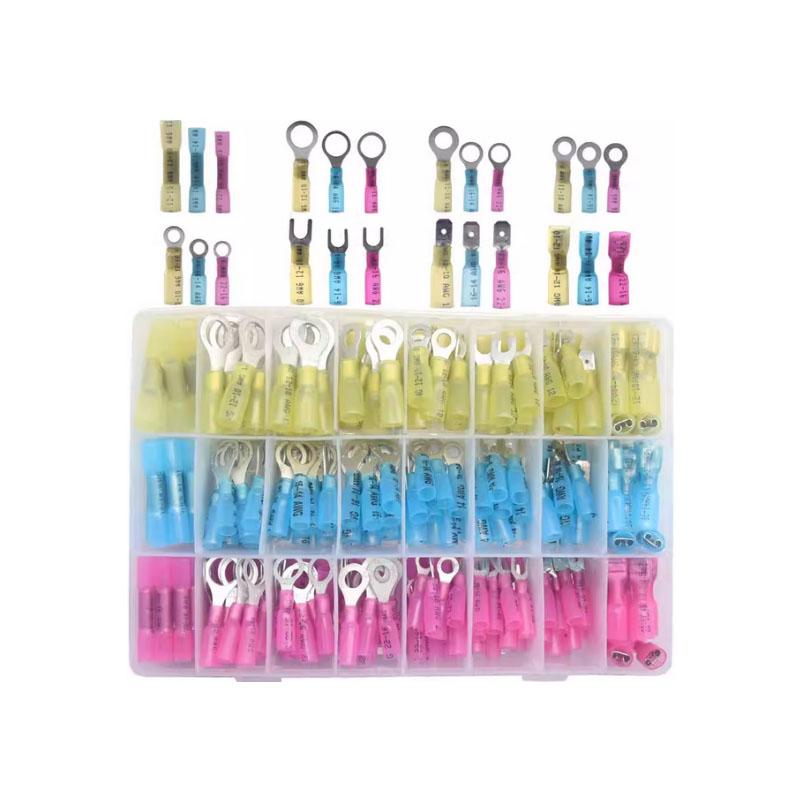

Heat shrink preset cold pressed end series is made of polyolefin and hot melt adhesive composite production ofheat shrink sleeve, used to protect the connection, waterproof and anti-corrosion, can strengthen the fixed and shock.proof in rough environment, line beam fall off, with good insulation protection electronic connector function.Compared with conventional connectors, it has the advantages of durability, easy installation and low installationcost.
Shrinkage ratio 3:1
Wear and corrosion resistance
Moisture-proof, waterproof
End material: copper
Surface coating: tin plating
Insulation material: polyethylene
Operating temperature:-55°C~125°C
Starting shrinkage temperature: 80°C
Minimum full shrinkage temperature: 140°C

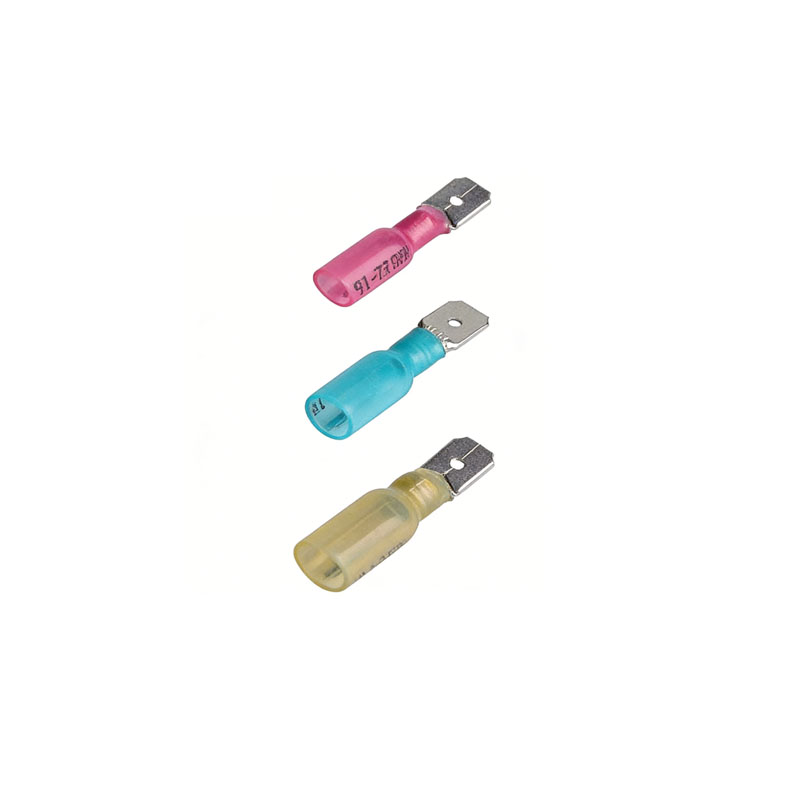

| Test Item | Index | Test condition | |
| preaging | Tensile strength | Min.18MPa | Room temperature |
| elongate | Min. 200% | ||
| After aging | Tensile strength | Min.11.5MPa | 150℃/7days |
| elongate | Min.100% | ||
| Withstand voltage and breakdown voltage (before aging) | Withstand 2.5KV within one minute without breakdown | Room temperature | |
| Withstand voltage and breakdown voltage (after aging) | Withstand 2.5KV within one minute without breakdown | 150℃/7days | |
| Cold bending | No crack | -40℃/4Hour (s) | |
| Secant modulus (24%) | 250 MPa | ||
| Volume resistivity | Min.1014Ω.cM | ||
| Thermal shock | No crack | 200℃/4Hour (s) | |
| Model number | Nema Tab | DIMENSION (mm) | PCS/ PACK | COLOR | EXPLANATION | |||||
| W | L | H | d1 | D | T | |||||

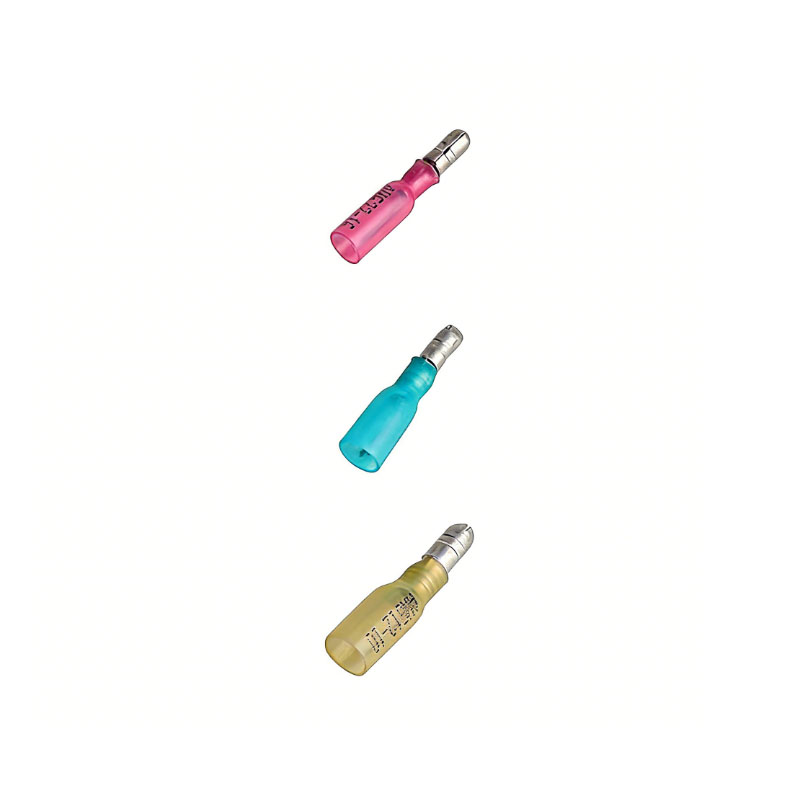

| MDH1.25-187(5) | 0.5×4.75 | 4.75 | 28 | 18 | 1.7 | 4.8 | 0.4 | 1000 | Red | Wire range:0.5-1.5mm² A.W.G.(22-16) Max.current:Imax=10A |
| MDH1.25-187(8) | 0.8×4.75 | |||||||||
| MDH1.25-250 | 0.8×6.35 | 6.35 | 29 | |||||||
| MDH2-187(5) | 0.5×4.75 | 4.75 | 28 | 18 | 2.3 | 5.8 | 0.4 | 1000 | Blue | Wire range:1.5-2.5mm² A.W.G.:(16-14) Max.current:Imax=15A |
| MDH2-187(8) | 0.8×4.75 | |||||||||
| MDH2-250 | 0.8×6.35 | 6.35 | 29 | |||||||
| MDH5.5-187(5) | 0.5×4.75 | 4. 8 | 30 | 20 | 3.4 | 6.8 | 0.4 | 500 | Yellow | Wire range:4-6mm² A.W.G.:(12-10) Max.current:Imax=24A |
| MDH5.5-187(8) | 0.8×4.75 | |||||||||
| MDH5.5-250 | 0.8×6.35 | 6.35 | 31 | |||||||
| Model number | Nema Tab | DIMENSION (mm) | PCS/ PACK | COLOR | EXPLANATION | |||||
| W | L | H | d1 | D | T | |||||

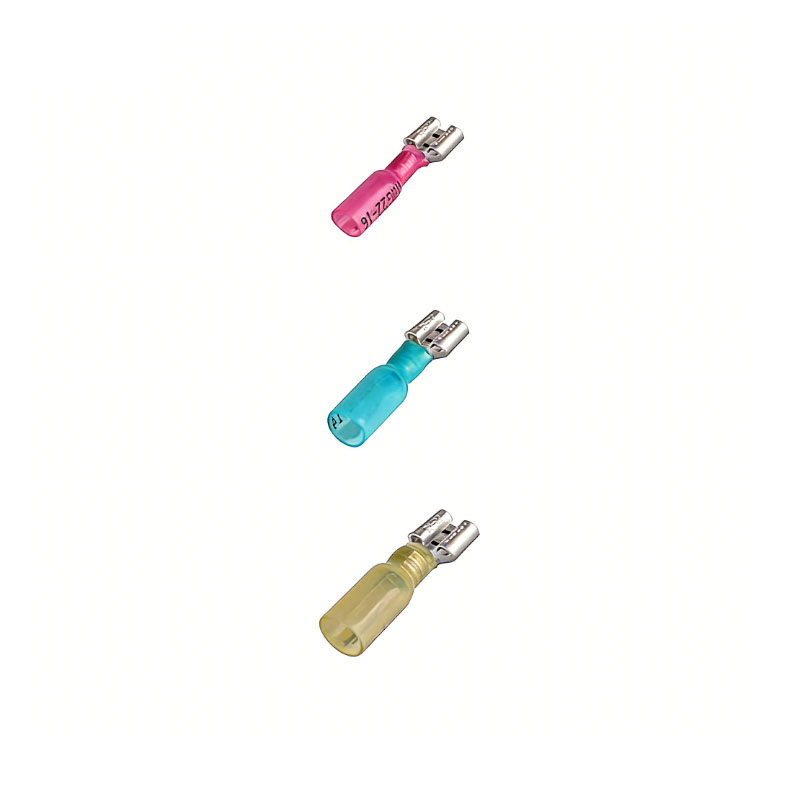

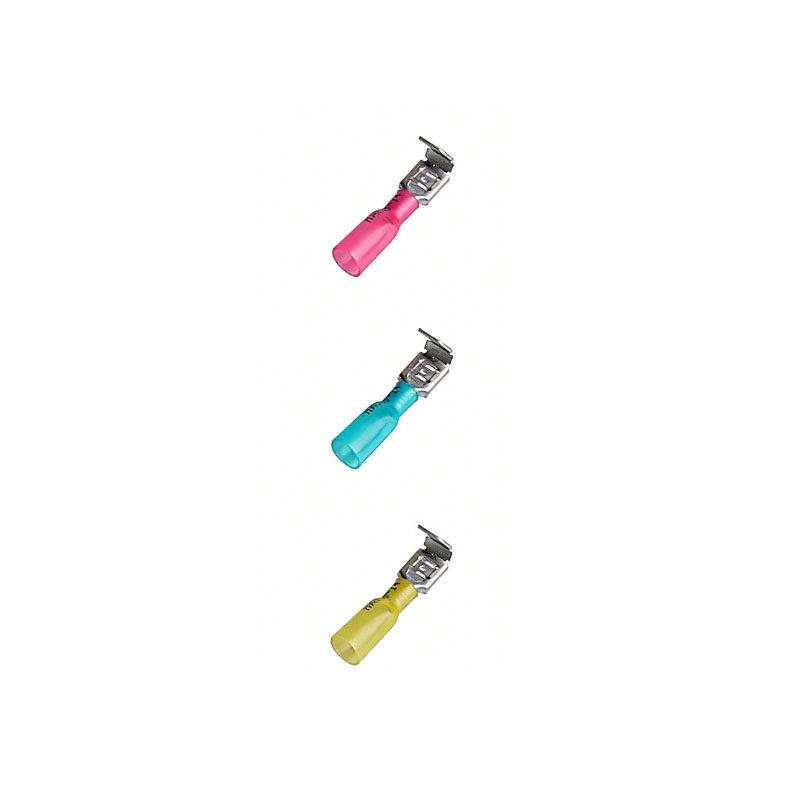

| FDH1.25-187(5) | 0.5×4.75 | 5.8 | 28 | 19 | 1.7 | 4.8 | 0.4 | 1000 | Red | Wire range:0.5-1.5mm² A.W.G.(22-16) Max.current:Imax=10A |
| FDH1.25-187(8) | 0.8×4.75 | |||||||||
| FDH1.25-250 | 0.8×6.35 | 7.5 | 30 | |||||||
| FDH2-187(5) | 0.5×4.75 | 5.8 | 28 | 19 | 2.3 | 5.8 | 0.4 | 1000 | Blue | Wire range:1.5-2.5mm² A.W.G.:(16-14) Max.current:Imax=15A |
| FDH2-187(8) | 0.8×4.75 | 5.8 | ||||||||
| FDH2-250 | 0.8×6.35 | 7.5 | 30 | |||||||
| FDH5.5-187(5) | 0.5×4.75 | 5 | 31 | 21 | 3.4 | 6.8 | 0.4 | 500 | Yellow | Wire range:4-6mm² A.W.G.:(12-10) Max.current:Imax=24A |
| FDH5.5-187(8) | 0.8×4.75 | 5 | ||||||||
| FDH5.5-250 | 0.8×6.35 | 7.5 | 32 | |||||||
| Model number | Nema Tab | DIMENSION (mm) | PCS/ PACK | COLOR | EXPLANATION | |||||
| W | L | H | d1 | D | T | |||||

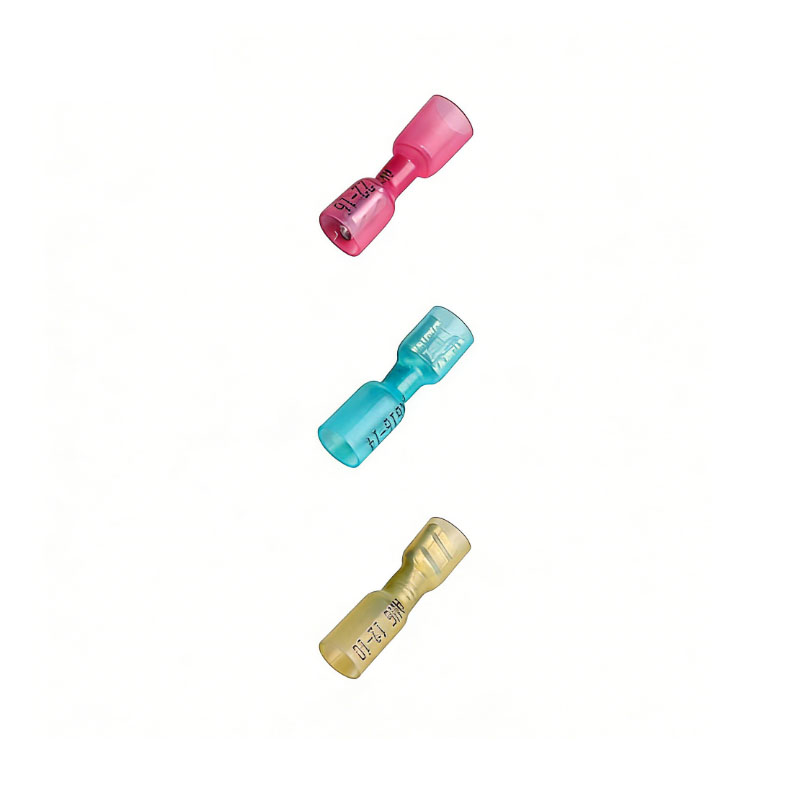

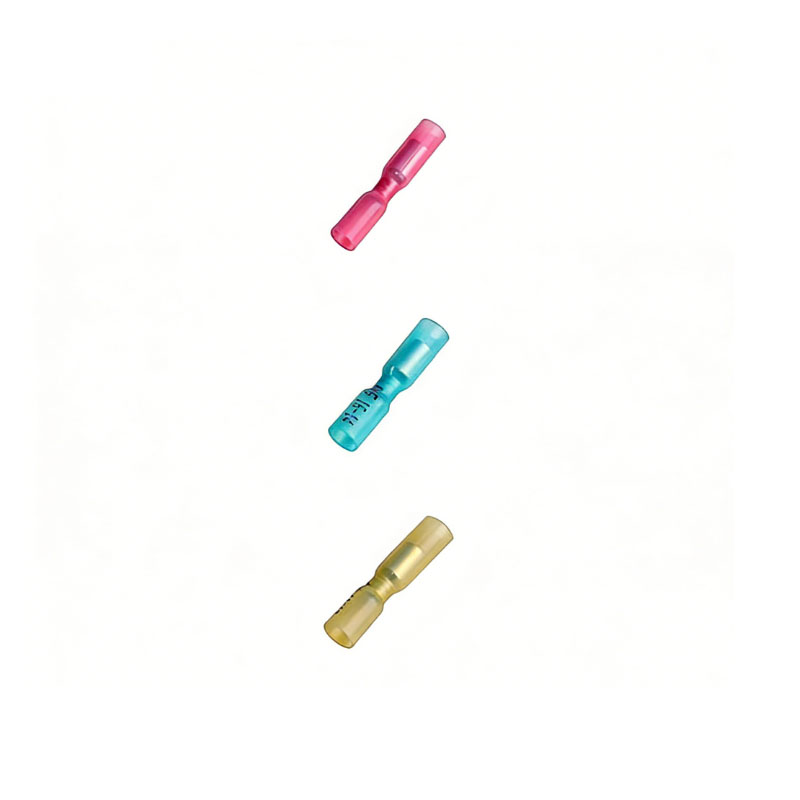

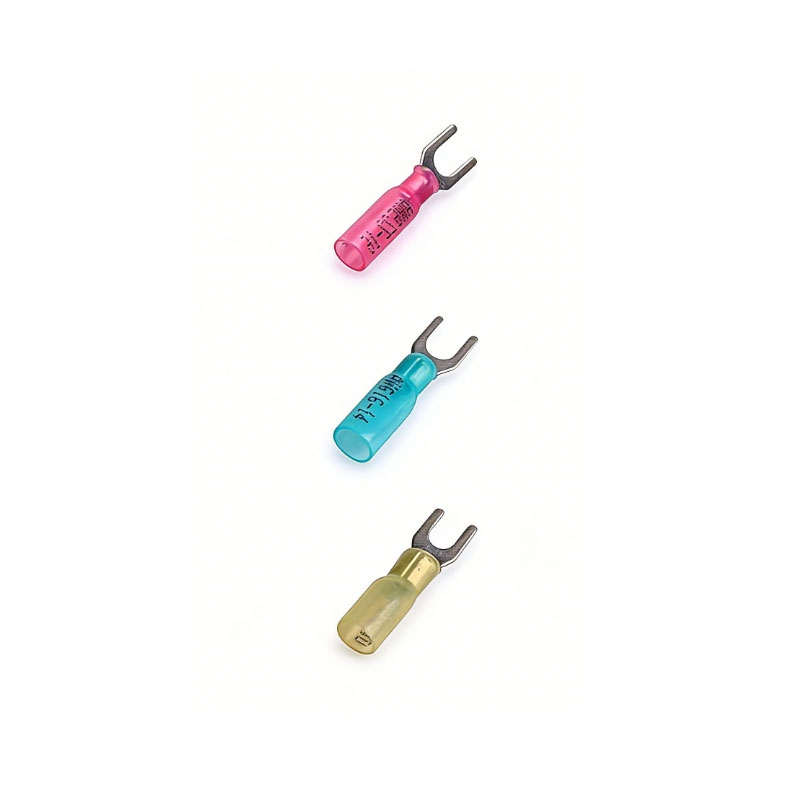

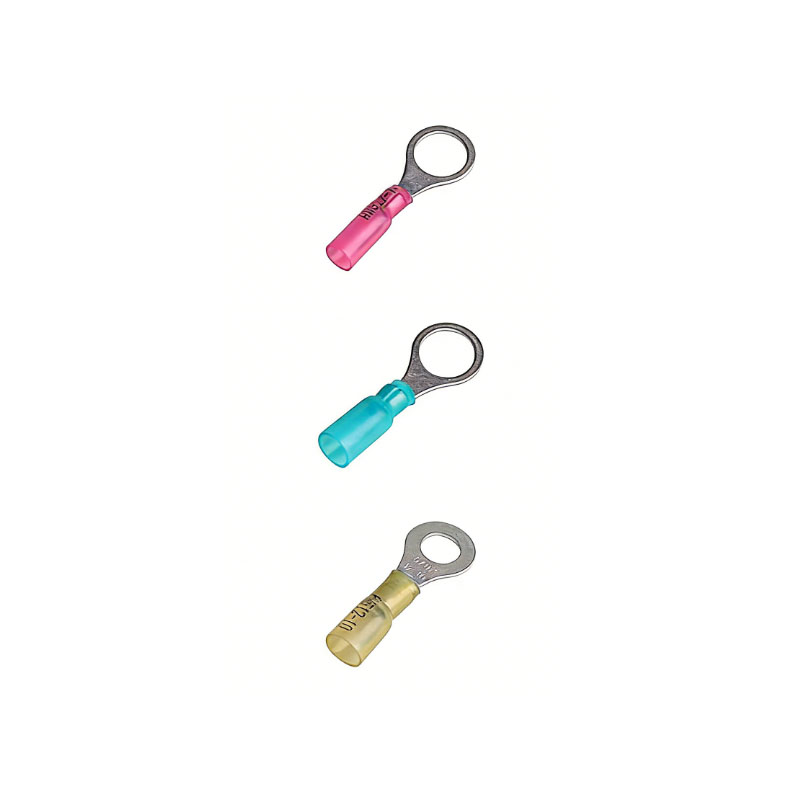

| FDFH1.25-187(5) | 0.5×4.75 | 5.8 | 30 | 19 | 1.7 | 4.8 | 0.4 | 1000 | Red | Wire range:0.5-1.5mm² A.W.G.(22-16) Max.current:Imax=10A |
| FDFH1.25-187(8) | 0.8×4.75 | |||||||||
| FDFH1.25-250 | 0.8×6.35 | 7.5 | 30 | |||||||
| FDFH2-187(5) | 0.5×4.75 | 5.8 | 30 | 19 | 2.3 | 5.8 | 0.4 | 1000 | Blue | Wire range:1.5-2.5mm² A.W.G.:(16-14) Max.current:Imax=15A |
| FDFH2-187(8) | 0.8×4.75 | 5.8 | ||||||||
| FDFH2-250 | 0.8×6.35 | 7.5 | 30 | |||||||
| FDFH5.5-187(5) | 0.5×4.75 | 5 | 32 | 21 | 3.4 | 6.8 | 0.4 | 500 | Yellow | Wire range:4-6mm² A.W.G.:(12-10) Max.current:Imax=24A |
| FDFH5.5-187(8) | 0.8×4.75 | 5 | ||||||||
| FDFH5.5-250 | 0.8×6.35 | 7.5 | 32 | |||||||
| Model number | DIMENSION (mm) | PCS/ PACK | COLOR | EXPLANATION | |||||
| W | L | H | d1 | D | T | ||||
| FRH1.25-156 | 3.9 | 13 | 34 | 1.7 | 4.8 | 0.4 | 1000 | Red | Wire range:0.5-1.5mm² A.W.G.:(22-16) Max.current=10A |
| FRH2-156 | 3.9 | 14 | 34 | 2.3 | 5.8 | 0.4 | 1000 | Blue | Wire range:1.5-2.5mm² A.W.G.:(16-14) Max.current=15A |
| FRH2-195 | 4.9 | ||||||||
| FRH5.5-156 | 3.9 | 14 | 38 | 3.4 | 6.8 | 0.4 | 500 | Yellow | Wire range:4-6mm² A.W.G.:(12-10) Max.current=24A |
| FRH5.5-195 | 4.9 | 14 | 38 | 3.4 | 6.8 | 0.4 | 500 | ||
| Model number | STUD SIZE | DIMENSION (mm) | PCS/ PACK | COLOR | EXPLANATION | ||||||||
| Metric | American | d2 | W | F | L | H | d1 | D | T | ||||

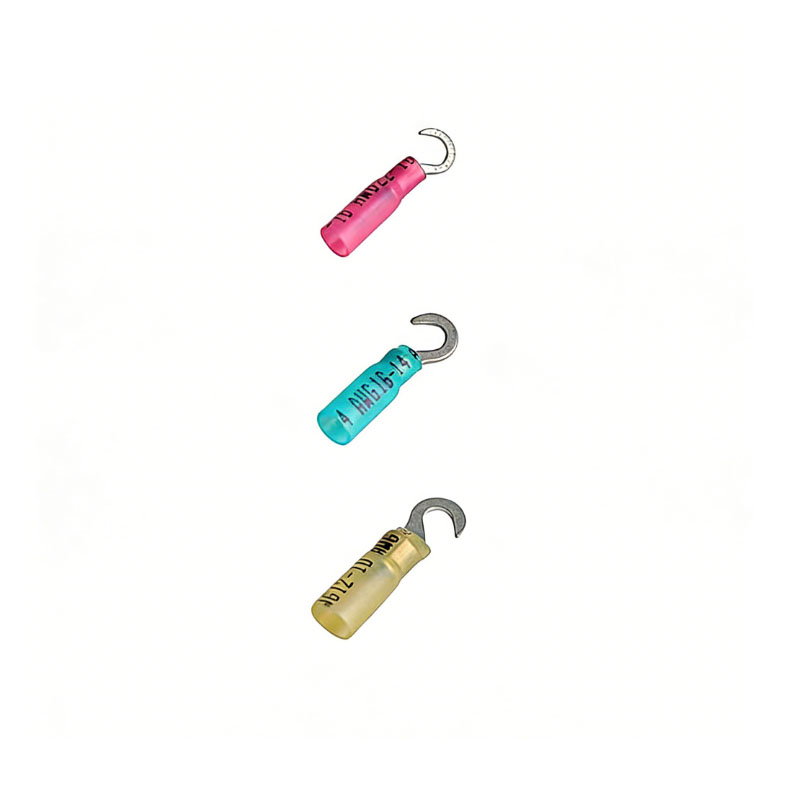

| HTH1.25-5 | 5 | #10 | 5.3 | 8 | 7 | 30 | 19 | 1.7 | 4.3 | 0.7 | 1000 | Red | Wire range:0.5-1.5mm² A.W.G.:（22-16） Max.current=10A |
| HTH1.25-6 | 6 | 1/4″ | 6.4 | 11.6 | 11.2 | 36 | |||||||
| HTH2-5 | 5 | #10 | 5.3 | 9.5 | 7.5 | 31 | 19 | 2.3 | 4.8 | 0.8 | 1000 | Blue | Wire range:1.5-2.5mm² A.W.G.:（16-14） Max.current=15A |
| HTH2-6 | 6 | 1/4″ | 6.4 | 12 | 11 | 36 | |||||||
| HTH5.5-5 | 5 | #10 | 5.3 | 9.5 | 8.85 | 34 | 21 | 3.4 | 6.7 | 1 | 500 | Yellow | Wire range:4-6mm² A.W.G.:（12-10） Max.current=24A |
| HTH5.5-6 | 6 | 1/4″ | 6.4 | 12 | 10.5 | 37 | |||||||
For more detailed information about our products, please feel free to contact us for a quote.
