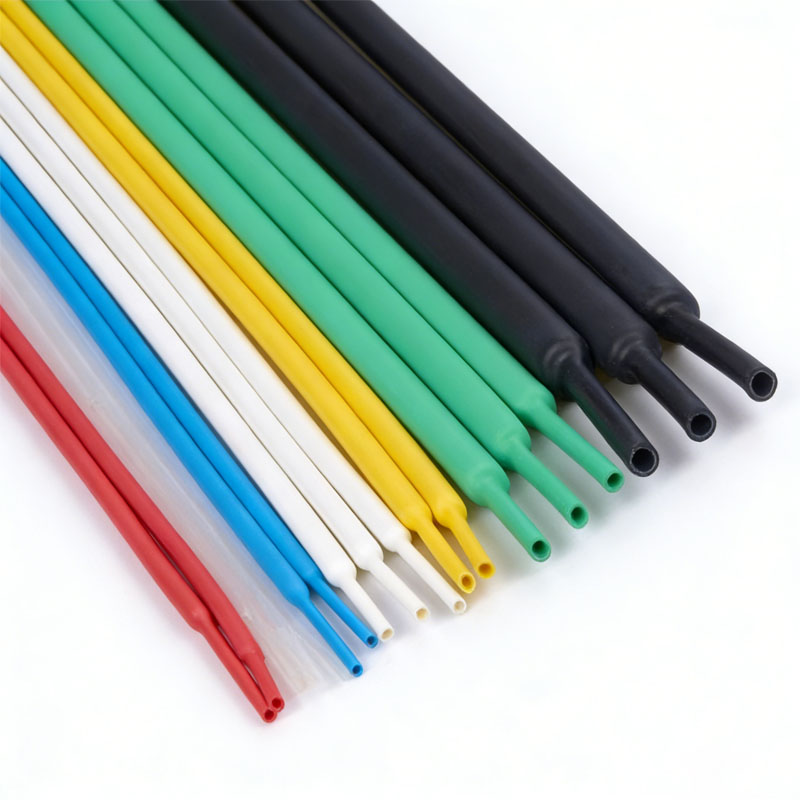

It is made of irradiated cross-linked material and undergoes 4 times radial uniform shrinkage. Compared with 2:1 and 3:1 heat shrink tubing, it is suitable for irregular workpieces and thick-thin connection joints, featuring excellent insulation, flame retardancy, and weather resistance. It is easy to install and is used for sealing wire harnesses, protecting solder joints, repairing circuits, and covering precision components.
Used for insulation packaging and protection of wiring harnesses in the electronics and electrical appliances industry, as well as in the automotive and rail transportation, and new energy sectors; for anti-slip coating and appearance enhancement.
The radial contraction ratio is 4:1, and the axial contraction rate is ≤ 10%. The contraction is uniform without skewing. It can closely cover workpieces with significant size differences and special structures without wrinkles, cavities, halogens, heavy metals, or phthalates. It complies with international environmental protection standards such as RoHS and REACH, and is suitable for use in electrical wires and cables, equipment, and export scenarios.
| Performance characteristics
4：1 Environment Friendly Dual Wall Heat Shrinkable Tube Characters |
||
| Performance
PROPERTY |
test method
TEST METHOD |
performance index
Stantard |
| tensile strength（MPa）
Tensile Strength（MPa） |
ASTM D 2671 | ≥12 |
| elongation at break（%）
Elongation（%） |
ASTM D 2671 | ≥300 |
| Tensile strength after thermal aging（MPa）
Tensile Strength after aging（MPa） |
UL224 158℃×168h | ≥7.3 |
| Elongation at break after thermal aging（%）
Elongation at Break after aging（%） |
UL224 158℃×168h | ≥200 |
| Breakdown strength（KV/mm）
Dielectric strength（KV/mm） |
IEC 243 | ≥15 |
| Volume resistivity（Ω.m）
Volume resistance（Ω.m） |
IEC 93 | ≥1×1014 |
| Material: ⑴ EVA; (2) hot melt adhesive | ||
| Hot melt adhesive properties
Hot Melting Adhesive Property |
||
| Performance
PROPERTY |
test method
TEST METHOD |
performance index
Stantard |
| Water absorption
Water Absorption |
ASTM-D570 | ＜0.2% |
| softening point
Vicat Softening Point |
ASTM-E8 | 95℃ |
| Peel strength (PE)
Peel Strength（PE） |
ASTM-D1000 | 120N/25mm |
| Peel strength (PE)
Peel Strength（PE） |
ASTM-D1000 | 80N/25mm |
For more detailed information about our products, please feel free to contact us for a quote.
We offer customized solutions specifically built to meet your exact specifications, environment and performance goals.
