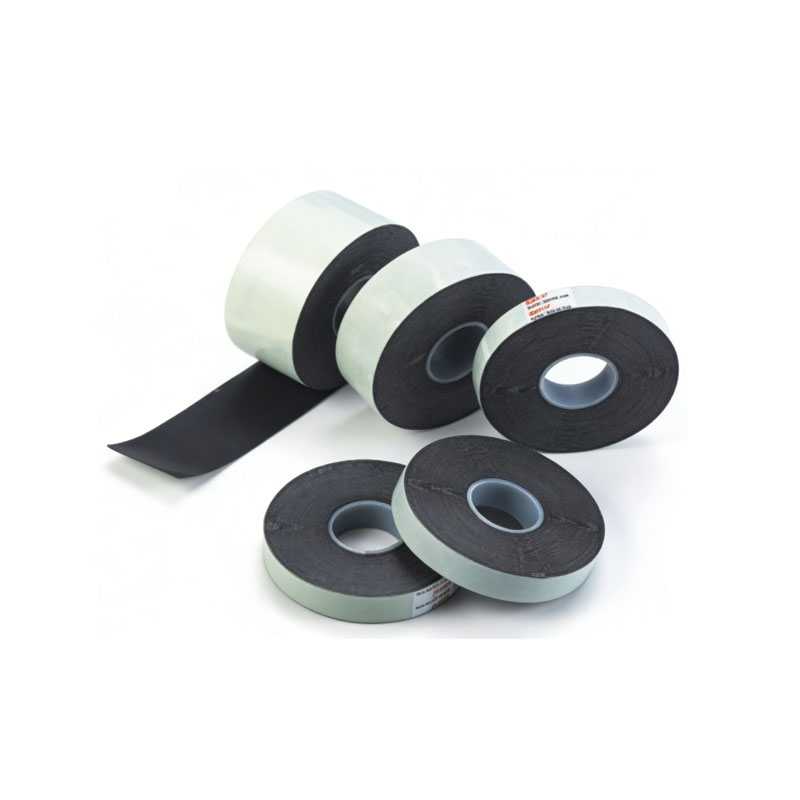

Self-Amalgamating Rubber Tape is a general-purpose insulating, self-amalgamating tape basedon PlB(Pohsobutylene) mubber
·Good physical and electrical properties with a high degree of stability under conditions of use.
·The tape amalgamates rapidly when applied under tension to provide a void free homogeneous wrapping,without the need for extenal heat or pressure.
·Compatible with a wide range of rubber and plastic dielectric cable insulation.These include polyethylene,cross-inked polyethy-lene,ethylene propylene rubber,PVC,buty and neoprene.
·Highly resistant to prolonged immersion in water and has excellent resistance to ozone.
·The product can be removed cleanly from most substrates,making it suitable for temporary repairs.
·Supplied in an easy to handle and apply tape form.The product is interleaved with a disposable plastic liner.
·For jointing and repairing a wide range of solid dielectric power cablesup to 11kv.
·Excellent physical and electrical porperties apply for high degreestability conditions
·The tape amalgamates rapidly when applied under tension to providea void-free homogeneous wrapping, without the need for externalheat or pressure.
·Compatable with a wide range or rubber and plastic dielectric cable.including polyethylene, cross-linked polyethlene, ethylene propylenerubber, PVC, Butyi and neoprene neoprene.
·Excellent resistance to water and ozone.
·The tape will remove cleanly when cut, allowing it to be used astemporary insulation or protection.
·Supplied in an easy to handle and apply tape form.
·The product is interieaved with a disposable plastic liner.
·For insulation,waterproofing and protection of electrical components.
| Property | Typical data |
| Tensile strength (kN/M) | 1.2 |
| Elongation at break (%) | 600 |
| Volume resistivity ( Ω/cm) | 1.0× 105 |
| Dielectric strength (kV/mm) | 11 |
| Service temperature (℃) | −30 to +70 |
| ·Care should be taken to avoid direct contact between the tape and petroleum-type solvents and oils. Oils may affect the elect-rical properties of the tape. ·The rolls should be stored at on their cut edges in the onginal packaging,The product must be protected from dust, heat, moisture, direct sunlight and solvent fumes. Storage temperature between + 10'℃cand +35℃.Under these conditions, the storage lifeof the tape in a temperate climate will be at least two year |
|
For more detailed information about our products, please feel free to contact us for a quote.
We offer customized solutions specifically built to meet your exact specifications, environment and performance goals.
