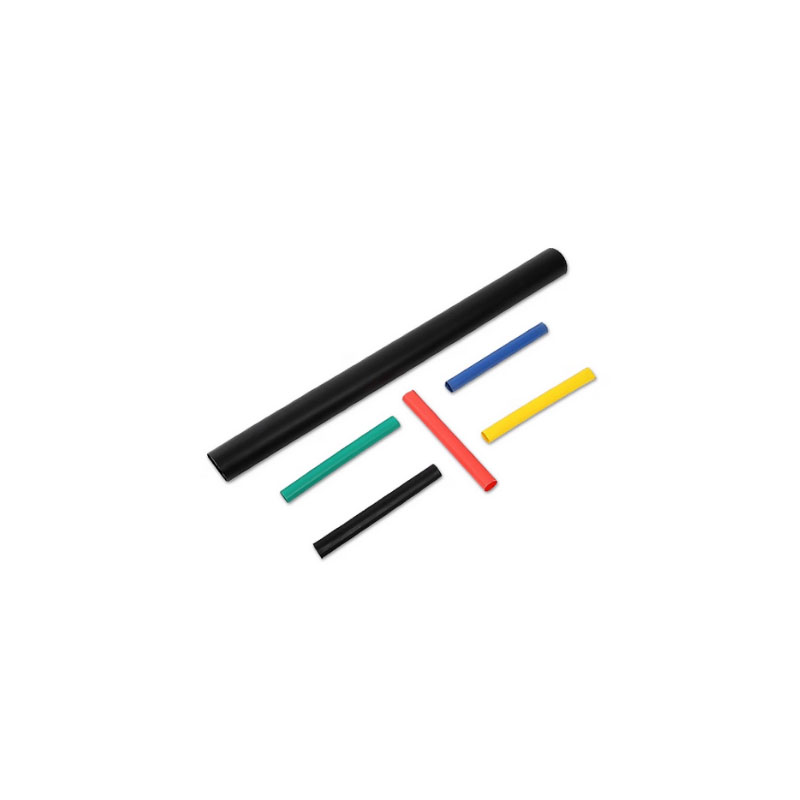

The heat shrinkable straight through joint used for electric power insulationconnection. suit for the underground connecting, under telecom and enery cablespark and garden ilumination, underground electrcal distrbution,pool and othermoisture ambient and under water . The resin layer can black the water, humidityand moisture to pass through the cable.During the mounting of heat shrinkable joint, do not apply the ire on the tube.surace not ixed, must apply with circular movements.
WVater Absorption: ASTM D 570 ≤0.5%
Electncal insulation: up to 5kV
Joint Shrink Point: 110℃
Joint Hardness: 45-50 Shores D
Tensile Strength: 12 Mpa
Break down Elongation:≥ 400 %
Adhesive Melting Point: 90℃
Removed Strength from Steel: 30 Nicm' at 23℃
Appropriate RoHS Standards
The excellent movement stability and credibility,good covering cable, easy mounting, excellent.
| Code | Cross,see.of cable (mm2) | D (mm) | L (mm) | Diameter of cable (mm) |
| LD1-3105C | 3 × 1.5 Cu | 28 | 260 | 13 |
| LD1-3205C | 3 × 2.5 Cu | 28 | 260 | 14 |
| LD1-4205C | 4 × 2.5 Cu | 28 | 260 | 15 |
| LD1-5205C | 5 × 2.5 Cu | 28 | 260 | 15 |
| LD1-504C | 5 × 4 Cu | 28 | 350 | 16 |
| LD1-506C | 5 × 6 Cu | 33 | 350 | 17 |
| LD1-510C | 5 × 10 Cu | 40 | 350 | 20 |
| LD1-410C | 4 × 10 Cu | 40 | 350 | 20 |
| LD1-416C | 4 × 16 Cu | 40 | 500 | 23 |
| LD1-425C | 4 × 25 Cu | 55 | 500 | 26 |
| LD1-435C | 4 × 35 Cu | 55 | 500 | 29 |
| LD1-416A | 4 × 16Al | 40 | 500 | 23 |
| LD1-425A | 4 × 25Al | 55 | 500 | 26 |
| LD1-435A | 4 × 35Al | 55 | 500 | 29 |
| LD1-450A | 4 × 50Al | 55 | 500 | 34 |
| LD1-470A | 4 × 70Al | 75 | 500 | 39 |
| LD1-495A | 4 × 95Al | 75 | 500 | 44 |
| LD1-4120A | 4 × 120Al | 95 | 750 | 48 |
| LD1-4150A | 4 × 150Al | 95 | 750 | 52 |
| LD1-4185A | 4 × 185Al | 115 | 750 | 58 |
| LD1-4240A | 4 × 240Al | 115 | 750 | 66 |
For more detailed information about our products, please feel free to contact us for a quote.
We offer customized solutions specifically built to meet your exact specifications, environment and performance goals.
