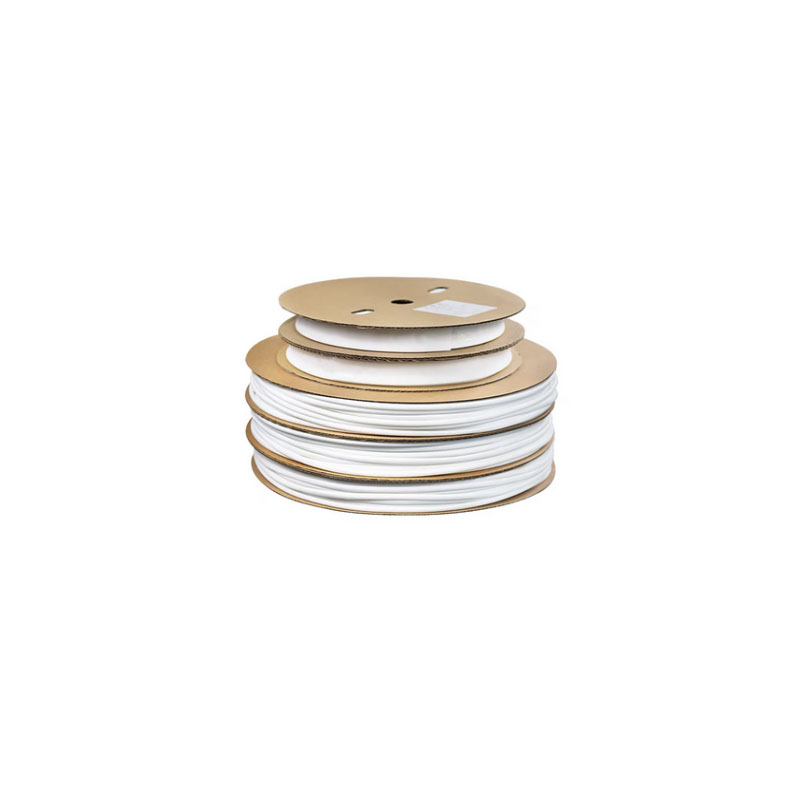

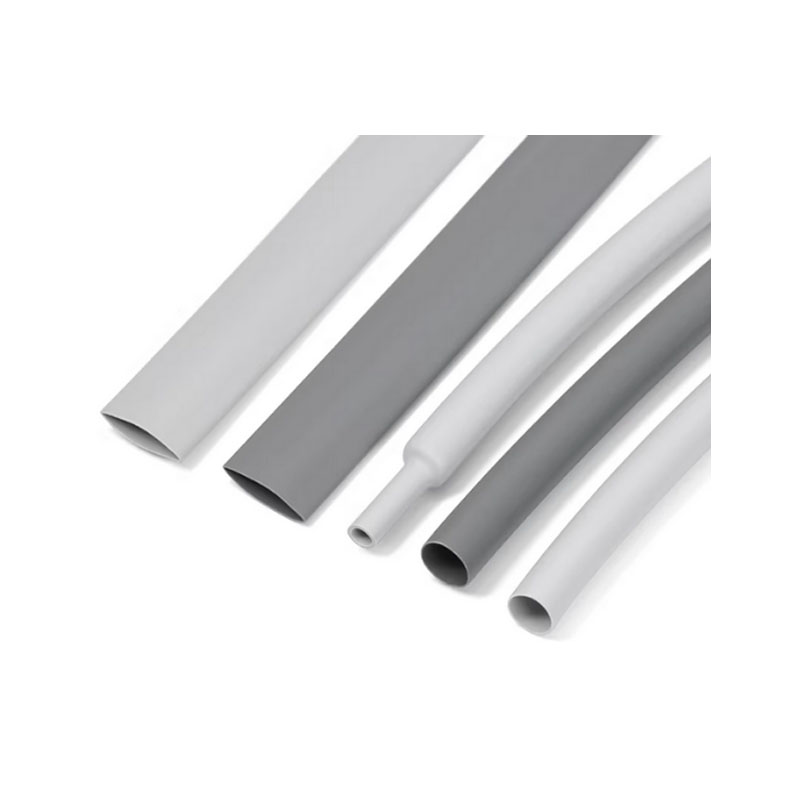

The outer layer is made ofradiation cross-linked polyolefin Layer is a specialy designed plastic inner wal; when heated, the inner wall of themelt, and with the shrinkage of theouter wall of the filling gap or gap cooling double wall pipe wallthickness uniform and solid.
Suitable temperature:-55℃~125 ℃;
Initialshrink thermometer:70°C;
Fully shrink thermometer: 125 ℃;
Theinnerlayermelting temperature:70℃-80 ℃
Shrink ratio: 3: 1. (According to customer requirements to provide a greater rate of contraction for example 4:1)Sealed waterproof, large strain capacity;
Easy to use oven and heat gun can shrink;
Availability of timely productioncapacity.Standard
Applications: double-walled tube with good adhesive properties of the inner layer of hot melt adhesive, the outer layerof soft radiation cross-linked polyethylene, the contraction rate of three times, after shrinking hot melt adhesive can beconnected to both ends of the material completely sealed, easy Construction, no maintenance, can withstand harshenvironments, moisture and other shocks, to protect the role of components, Widely used in electronic equipmentwiring waterproof, leak-proof, multi-strand waterproof seal (such as household appliances wiring harness, automotivewring harness, etc,, components sealed molsture, wateroroot and corrosion proteclion and insulation protection, wireand cable branch of the sealed waterproof, Corrosion proteclion of metal pipes, wire and cable repalr, water pumpsand submersible pumps waterproof and other occasions.
For more detailed information about our products, please feel free to contact us for a quote.
We offer customized solutions specifically built to meet your exact specifications, environment and performance goals.
