The 36kV heat-shrink cable accessories, as the core component for power transmission at the 36kV voltage level, possess excellent high-voltage insulation, sealing protection and convenient construction performance. They are widely used in various medium and high-voltage power transmission and distribution scenarios, covering the power system, industrial production, infrastructure and other fields. They comply with domestic and international standards such as GB11033 and IEC 60502, and are suitable for various laying environments and working conditions.
| Property | Parameter | Evaluation |
| Power frequency dry-state withstand voltage (kV/5min) | 105 | No lash and breakdown |
| Power frequency damp-state withstand voltage (kV/5min) | 105 | No lash and breakdown |
| Power frequency long-time withstand voltage (kV/4h) | 78 | No lash and breakdown |
| Surge withstand voltage (kV/1.2/50μs±10次) | 140 | No breakdown |
| DC withstand voltage (kV/15min) | 156 | No lash and breakdown |
| Part discharge (kV.pc/1.5uo) | 10 | Pass |
| category | model | Applicable cable section (mm²) |
||

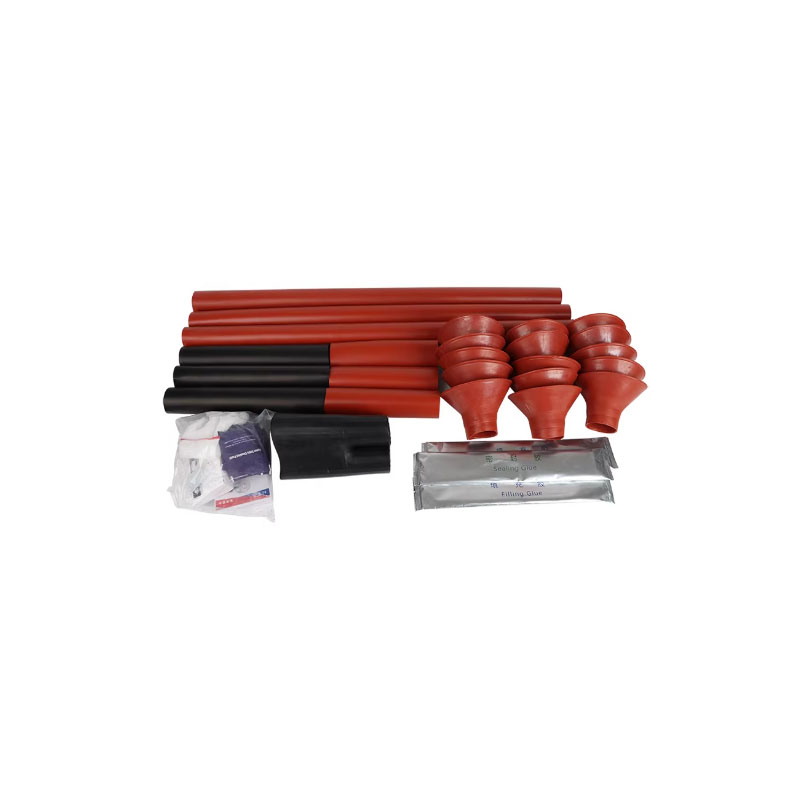

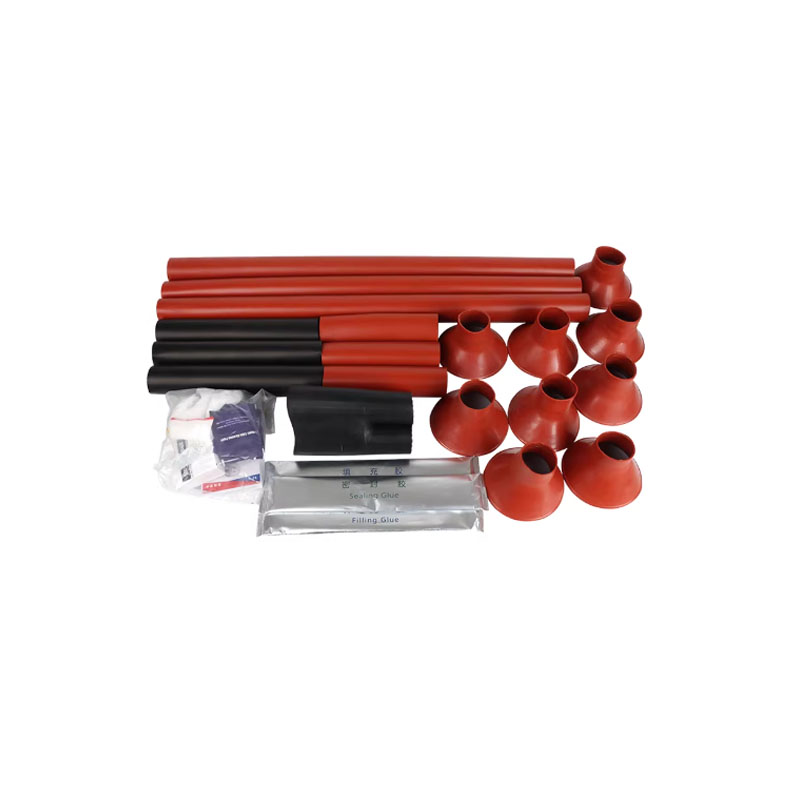

| 36kv Three-Core Termination | Indoor Termination | 1# | NRSY-35/3.1 | 50~120mm2 |
| 2# | NRSY-35/3.2 | 150~300mm2 | ||
| 3# | NRSY-10/3.3 | 400~500mm2 | ||
| Outdoor Termination | 1# | WRSY-35/3.1 | 50~120mm2 | |
| 2# | WRSY-35/3.2 | 150~300mm2 | ||
| 3# | WRSY-35/3.3 | 400~500mm2 | ||

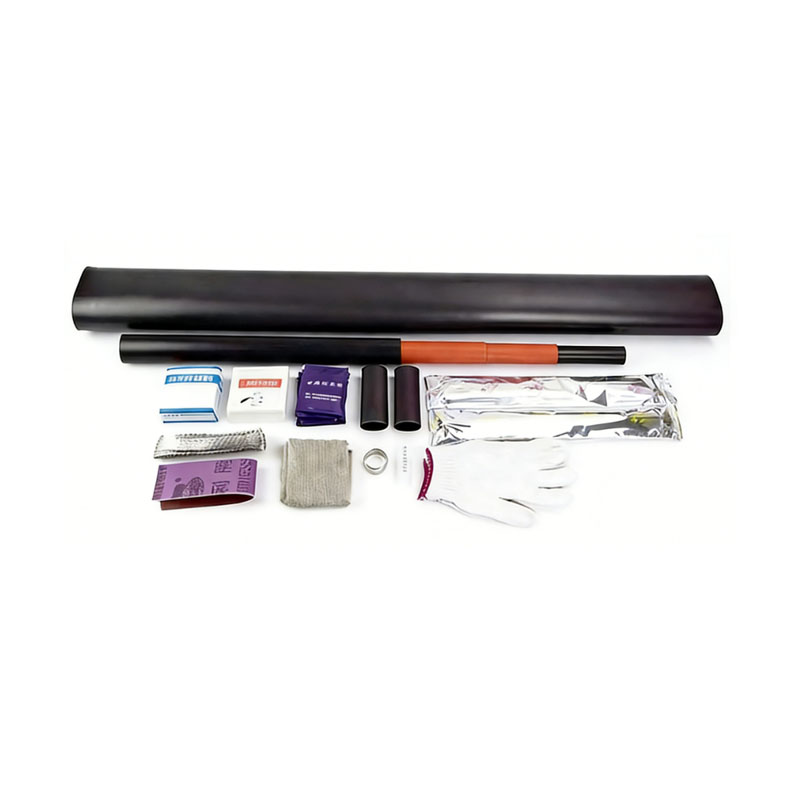

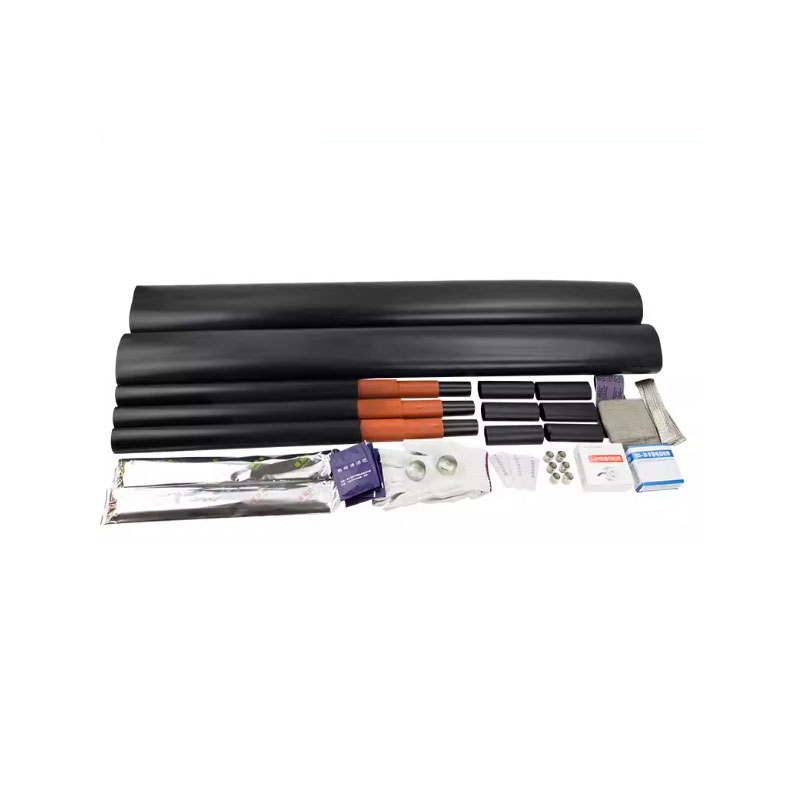

| Intermediate Joint | 1# | JRSY-35/3.1 | 50~120mm2 | |
| 2# | JRSY-35/3.2 | 150~300mm2 | ||
| 3# | JRSY-35/3.3 | 400~500mm2 | ||

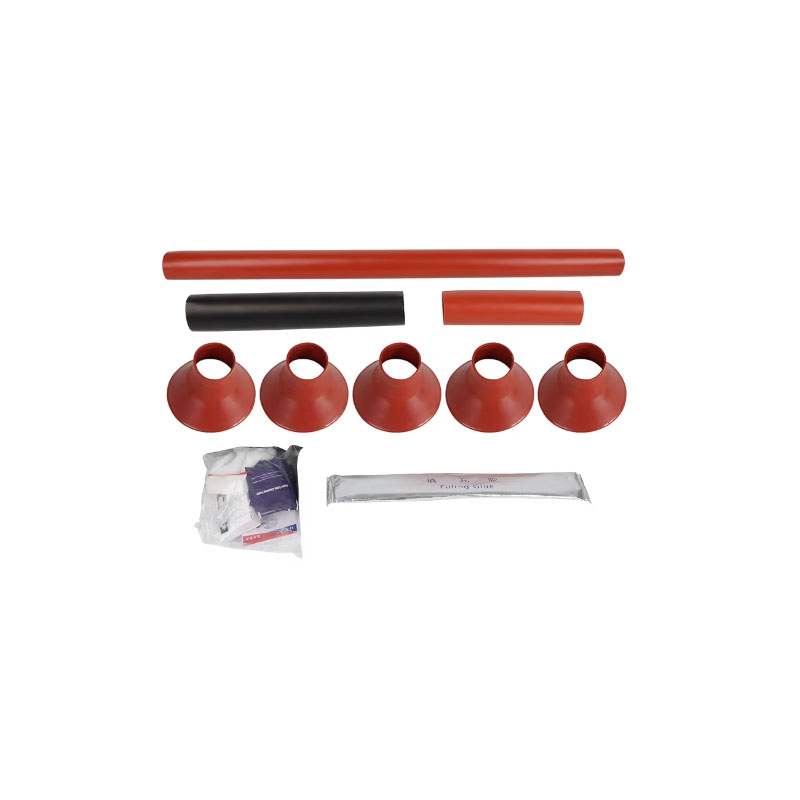

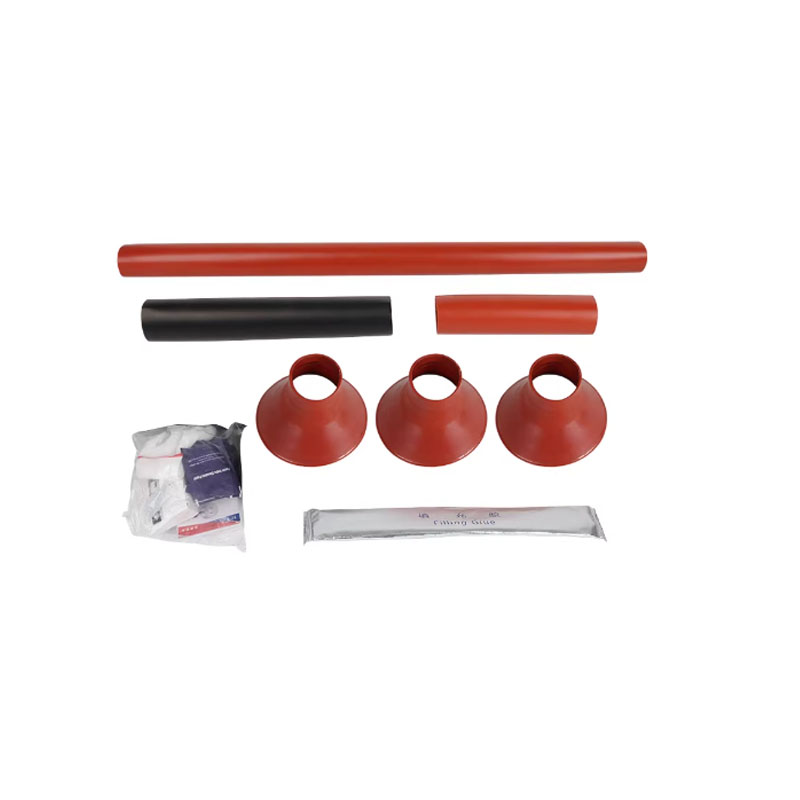

| 36kv Single-Core Termination | Indoor Termination | 1# | NRSY-35/1.1 | 50~120mm2 |
| 2# | NRSY-35/1.2 | 150~300mm2 | ||
| 3# | NRSY-10/1.3 | 400~500mm2 | ||
| Outdoor Termination | 1# | WRSY-35/1.1 | 50~120mm2 | |
| 2# | WRSY-35/1.2 | 150~300mm2 | ||
| 3# | WRSY-35/1.3 | 400~500mm2 | ||
| Intermediate Joint | 1# | JRSY-35/1.1 | 50~120mm2 | |
| 2# | JRSY-35/1.2 | 150~300mm2 | ||
| 3# | JRSY-35/1.3 | 400~500mm2 | ||
For more detailed information about our products, please feel free to contact us for a quote.
We offer customized solutions specifically built to meet your exact specifications, environment and performance goals.
