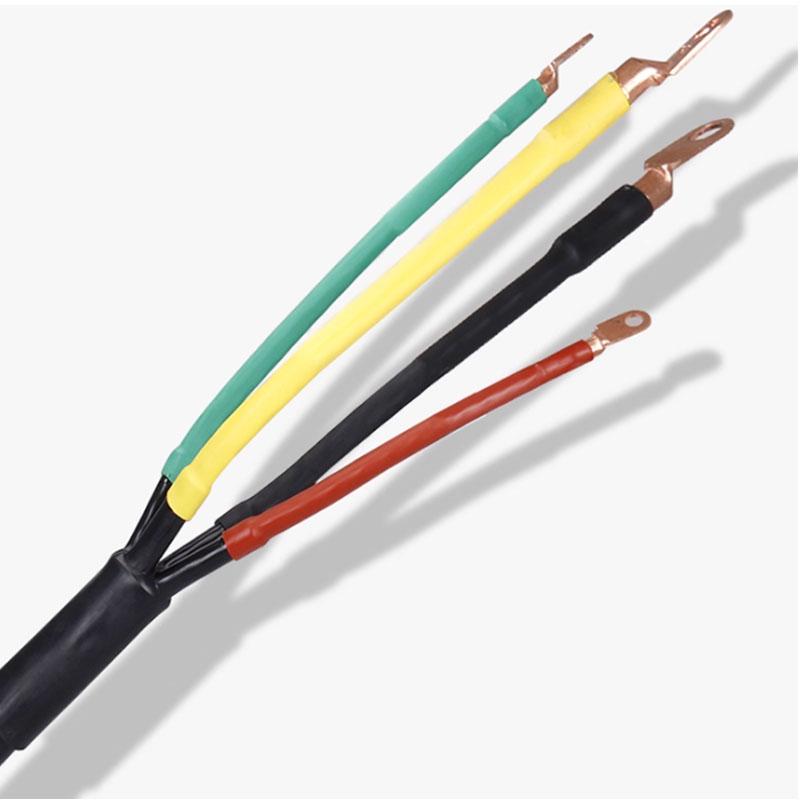

1. The finger sleeve can be shrunk without a cushion tube.

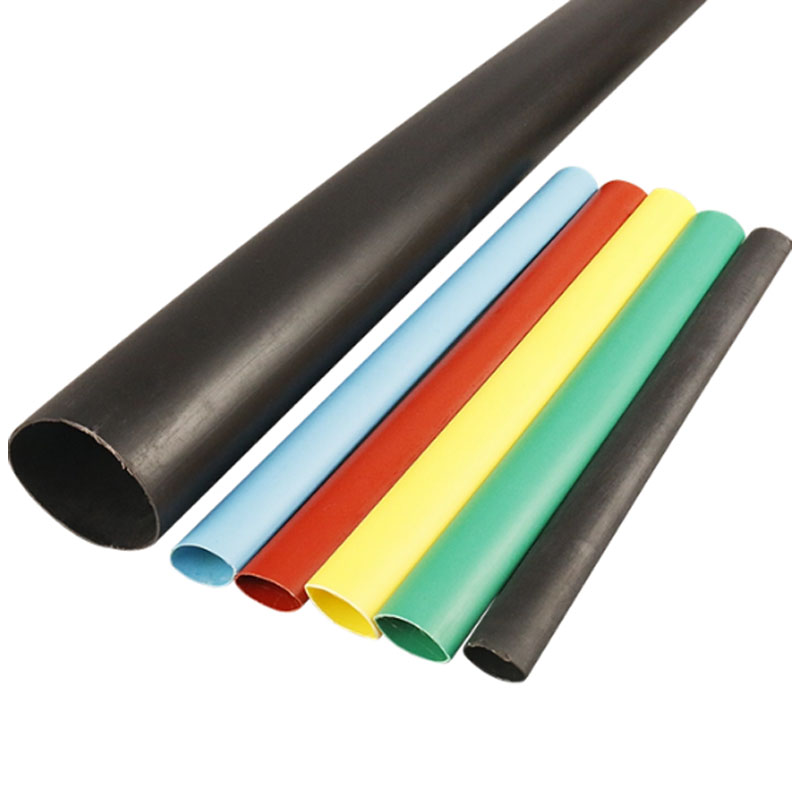

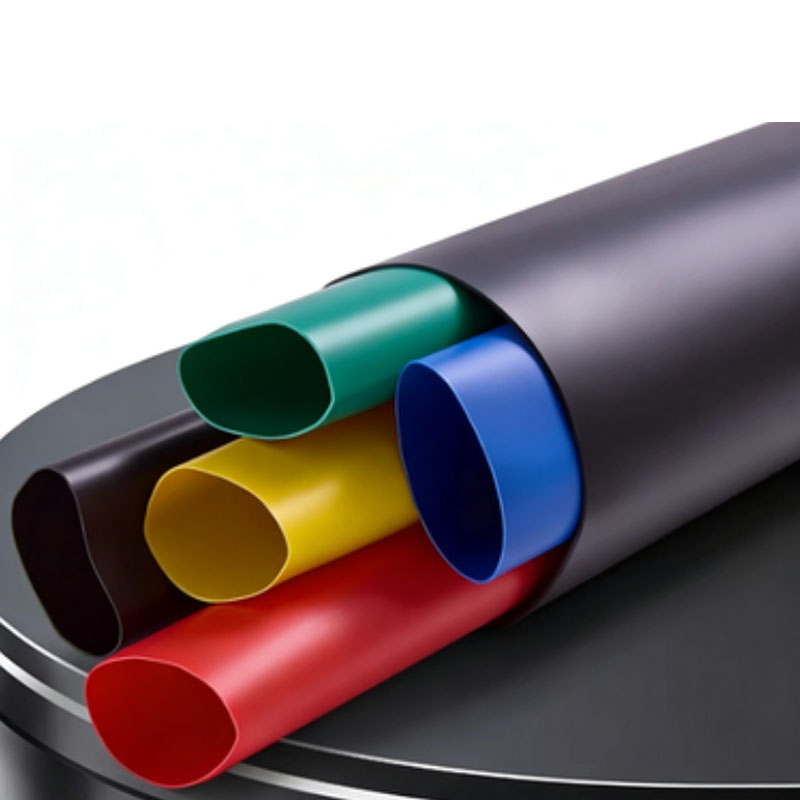

2. The insulation tube of terminal head is red, yellow, green, blue and black direct phase separation.
3. Fast shrinkage and no cracking
4. Flame retardant.
| Material name | Property | Parameter |
| Heat shrinkable material | Shoe hardness (A) | 84± 3 |
| Tensile strength (Mpa) | ≥12 | |
| Shrinkable temperature (°C ) | 120~130 | |
| Insulation tubing | Volume resistance(Ω.cm) | ≥1× 1014 |
| Dielectric strength (kV/mm) | ≥20 | |
| Radial shrinkable ratio | 2.5:1 | |
| Longitudinal shrinkable ratio (%) | ± 5 | |
| Power frequency long–time withstand voltage (kV/4h) | 2.4 | |
| Power frequency dry–state withstand voltage (kV/5min) | 4 |
| For cable cross section（mm²） | Cable cores | |||||
| Single core | Two cores | Three cores | Four cores | Five cores | ||
| Termination kit | 2,5,4,6 | TRSY-1/1.00 | TRSY-1/2.00 | TRSY-1/3.00 | TRSY-1/4.00 | TRSY-1/5.00 |
| 10,16 | TRSY-1/1.0 | TRSY-1/2.0 | TRSY-1/3.0 | TRSY-1/4.0 | TRSY-1/5.0 | |
| 25,35,50 | TRSY-1/1.1 | TRSY-1/2.1 | TRSY-1/3.1 | TRSY-1/4.1 | TRSY-1/5.1 | |
| 70,95,120 | TRSY-1/1.2 | TRSY-1/2.2 | TRSY-1/3.2 | TRSY-1/4.2 | TRSY-1/5.2 | |
| 150,185,240 | TRSY-1/1.3 | TRSY-1/2.3 | TRSY-1/3.3 | TRSY-1/4.3 | TRSY-1/5.3 | |
| 300,400 | TRSY-1/1.4 | TRSY-1/2.4 | TRSY-1/3.4 | TRSY-1/4.4 | TRSY-1/5.4 | |
| 500,630 | TRSY-1/1.5 | TRSY-1/2.5 | TRSY-1/3.5 | TRSY-1/4.5 | TRSY-1/5.5 | |
| Straight through joint | 2,5,4,6 | TRSY-1/1.00 | TRSY-1/2.00 | TRSY-1/3.00 | TRSY-1/4.00 | TRSY-1/5.00 |
| 10,16 | TRJSY-1/1.0 | TRJSY-1/2.0 | TRJSY-1/3.0 | TRJSY-1/4.0 | TRJSY-1/5.0 | |
| 25,35,50 | TRJSY-1/1.1 | TRJSY-1/2.1 | TRJSY-1/3.1 | TRJSY-1/4.1 | TRJSY-1/5.1 | |
| 70,95,120 | TRJSY-1/1.2 | TRJSY-1/2.2 | TRJSY-1/3.2 | TRJSY-1/4.2 | TRJSY-1/5.2 | |
| 150,185,240 | TRJSY-1/1.3 | TRJSY-1/2.3 | TRJSY-1/3.3 | TRJSY-1/4.3 | TRJSY-1/5.3 | |
| 300,400 | TRJSY-1/1.4 | TRJSY-1/2.4 | TRJSY-1/3.4 | TRJSY-1/4.4 | TRJSY-1/5.4 | |
| 500,630 | TRSY-1/1.5 | TRSY-1/2.5 | TRSY-1/3.5 | TRSY-1/4.5 | TRSY-1/5.5 | |
For more detailed information about our products, please feel free to contact us for a quote.
We offer customized solutions specifically built to meet your exact specifications, environment and performance goals.
