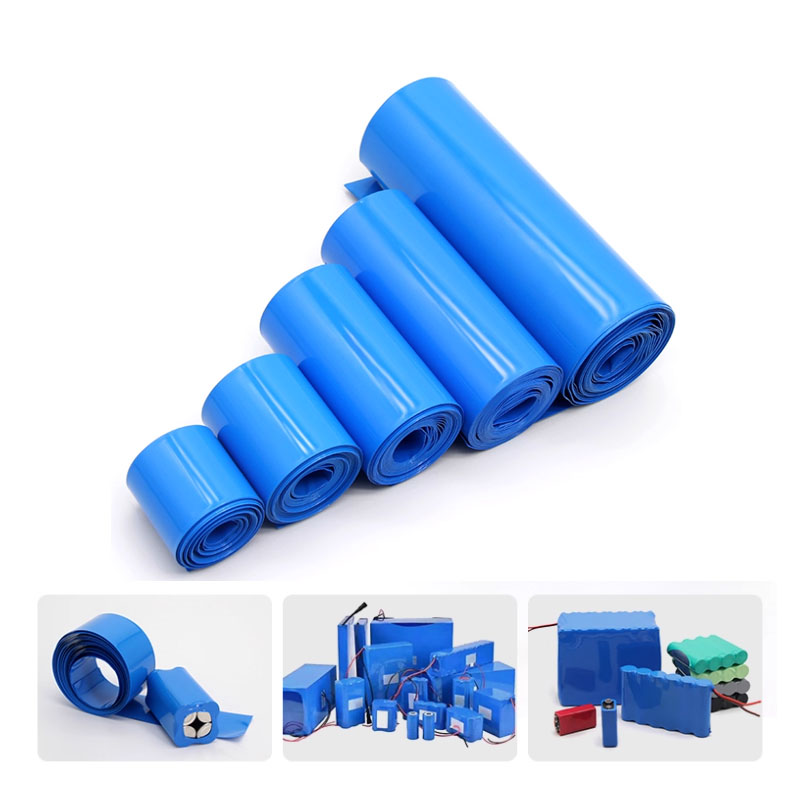

1.85℃、105℃、125℃ULPVC material2.0peratingtemperature:-55℃-125℃
3.FlameratardantUL224 VW-1
4.Excellentinsulation
5.Good flexibility
6.Resistance to acid&oil
7.Hook up wire&lead wire protection
| Specification | Folded diameter(mm) | Wall thickness | Potrait shrinkable rate at 100℃ | Potrait shr-inkable rate at hith temperature | ||
| 85℃ | 105℃ | 85℃ | 105℃ | 180℃&15 minutes | ||
| Φ2.8 | 4.7±0.5 | 0.08±0.015 | 0.08±0.015 | 9±2 | 7±2 | ≤20±3 |
| Φ3 | 5.0±0.5 | 0.08±0.015 | 0.08±0.015 | 9±2 | 7±2 | ≤20±3 |
| Φ3.2 | 5.5±0.5 | 0.08±0.015 | 0.08±0.015 | 9±2 | 7±2 | ≤20±3 |
| Φ4 | 7.0±0.5 | 0.08±0.015 | 0.08±0.015 | 9±2 | 7±2 | ≤20±3 |
| Φ5 | 8.7±0.5 | 0.08±0.015 | 0.08±0.015 | 9±2 | 7±2 | ≤20±3 |
| Φ6 | 10.5±0.5 | 0.08±0.015 | 0.08±0.015 | 9±2 | 7±2 | ≤26±3 |
| Φ7 | 12.0±1 | 0.08±0.015 | 0.08±0.015 | 9±2 | 7±2 | ≤26±3 |
| Φ8 | 13.8±1 | 0.08±0.015 | 0.08±0.015 | 9±2 | 7±2 | ≤26±3 |
| Φ9 | 15.0±1 | 0.08±0.015 | 0.08±0.015 | 9±2 | 7±2 | ≤26±3 |
| Φ10 | 16.8±1 | 0.108±0.02 | 0.108±0.02 | 9±2 | 7±2 | ≤26±3 |
| Φ11 | 18.0±1 | 0.10±0.02 | 0.10±0.02 | 9±2 | 7±2 | ≤26±3 |
| Φ12 | 20.0±1 | 0.10±0.02 | 0.10±0.02 | 9±2 | 7±2 | ≤26±3 |
| Φ13 | 21.5±1 | 0.10±0.02 | 0.10±0.02 | 9±2 | 7±2 | ≤26±3 |
| Φ14 | 23.5±1 | 0.10±0.02 | 0.10±0.02 | 9±2 | 7±2 | ≤26±3 |
| Φ15 | 24.5±1 | 0.10±0.02 | 0.10±0.02 | 9±2 | 7±2 | ≤26±3 |
| Φ16 | 27.0±1 | 0.10±0.02 | 0.10±0.02 | 9±2 | 7±2 | ≤26±3 |
| Φ17 | 28.0±1 | 0.10±0.02 | 0.10±0.02 | 9±2 | 7±2 | ≤26±3 |
| Φ18 | 29.0±1 | 0.10±0.02 | 0.10±0.02 | 9±2 | 7±2 | ≤26±3 |
| Φ19 | 31.0±1 | 0.10±0.02 | 0.10±0.02 | 9±2 | 7±2 | ≤26±3 |
| Φ20 | 32.5±1 | 0.10±0.02 | 0.10±0.02 | 9±2 | 7±2 | ≤26±3 |
| Φ21 | 34.0±1 | 0.12±0.02 | 0.12±0.02 | 9±2 | 7±2 | ≤26±3 |
| Φ22 | 35.5±1 | 0.12±0.02 | 0.12±0.02 | 9±2 | 7±2 | ≤26±3 |
| Φ23 | 36.5±1 | 0.12±0.02 | 0.12±0.02 | 9±2 | 7±2 | ≤26±3 |
| Φ24 | 39.0±1 | 0.12±0.02 | 0.12±0.02 | 9±2 | 7±2 | ≤26±3 |
| Φ25 | 41.0±1.5 | 0.12±0.02 | 0.12±0.02 | 9±2 | 9±2 | ≤27±3 |
| Φ26 | 43.5±1.5 | 0.12±0.02 | 0.12±0.02 | 9±2 | 9±2 | ≤27±3 |
| Φ27 | 45.0±1.5 | 0.12±0.02 | 0.12±0.02 | 9±2 | 9±2 | ≤27±3 |
| Φ28 | 46.5±1.5 | 0.12±0.02 | 0.12±0.02 | 9±2 | 9±2 | ≤27±3 |
| Φ30 | 50.0±1.5 | 0.15±0.025 | 0.15±0.025 | 9±2 | 9±2 | ≤27±3 |
For more detailed information about our products, please feel free to contact us for a quote.
We offer customized solutions specifically built to meet your exact specifications, environment and performance goals.
